What Is a Servo Voltage Stabilizer?

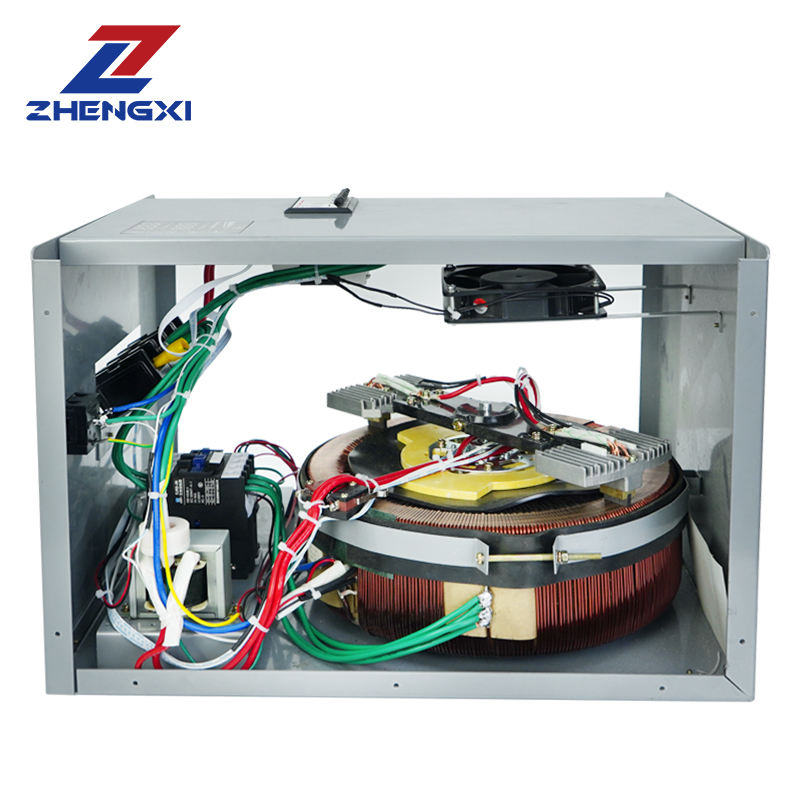

A servo voltage stabilizer is an advanced type of automatic voltage regulator (AVR) that uses a servo motor to control voltage fluctuations in real-time. Unlike traditional relay stabilizers, it provides continuous, precise correction—ideal for sensitive equipment and environments where stable voltage is non-negotiable.
Technical Parameters
| Model | SKW-8000VA | SKW-10KVA | SKW-15KVA | |
| Phase | Single phase | |||
| Input voltage | AC 110-260V, 140-260V (or customized) | |||
| Output voltage | AC 220V or customized | |||
| Frequency | 50Hz/60Hz | |||
| Precision | ±3% or customized | |||
| Efficiency | >95% | |||
| Control type | Servo motor | |||
| Digital display | Show input and output voltage,Load Ratio and Fault Indicator | |||
| Protection | Overvoltage, Overload, Time delay | |||
| Ambient temperature | -10°C~+ 40°C | |||
| Relative Humidity | <95% | |||
| Waveform Distortion | No additional wave form distortion | |||
| Insulating Resistance | Normally more than 2MΩ | |||
| Insulating Class | Class B | |||
| Protection | Overvoltage | Output Voltage ≥ 245V ± 4V | ||
| Low voltage | Output Voltage ≤ 180V ± 4V | |||
| Delay protection | Customizable | |||
| Undervoltage | Disabled by default, customizable if needed | |||
| Power | 8000VA | 10KVA | 15KVA | |
| Size(mm) L*W*H | 350*320*495 | 350*320*495 | 350*400*610 | |
| The size and weight vary depending on the voltage range, and are subject to the customized actual product. | ||||
Key Benefits of SKW Series Servo Voltage Stabilizers
- Wide Input Range: Handles input voltages as low as 110V or 140V up to 260V, depending on configuration.
- High Precision Output: ±3% regulation ensures equipment safety and reliability.

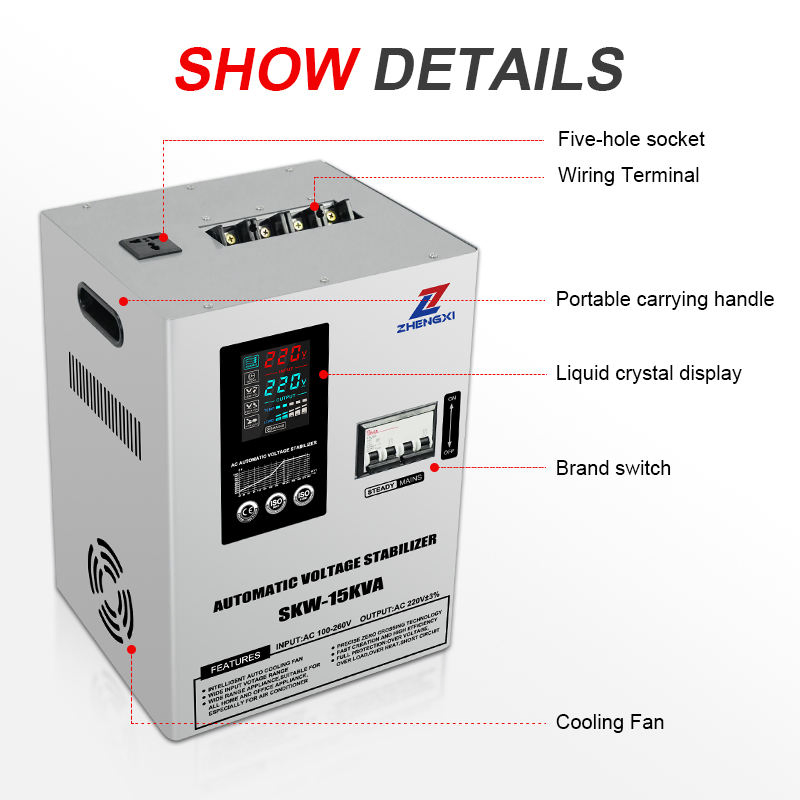

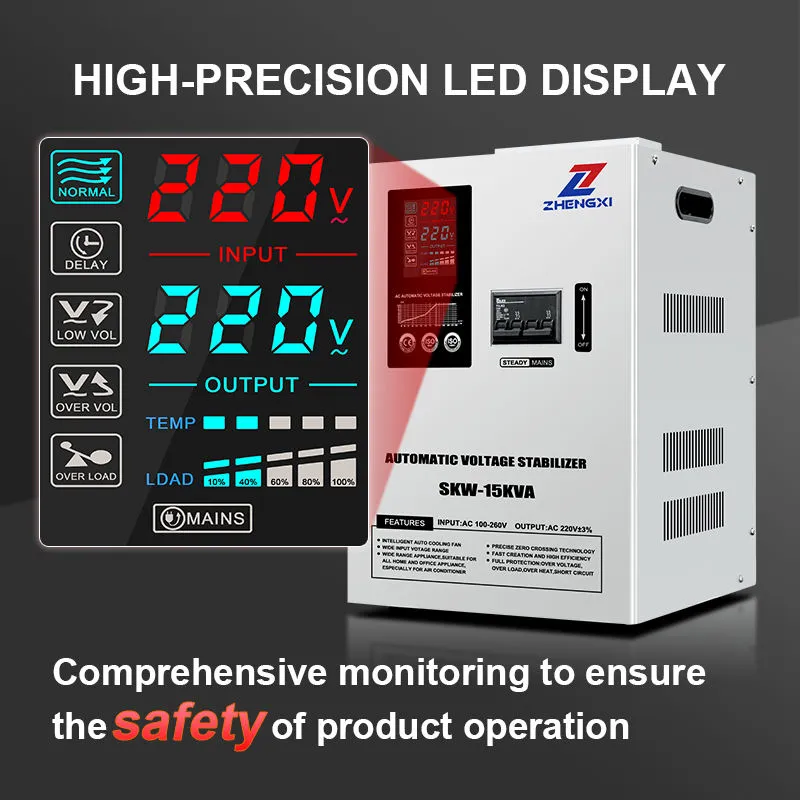

- Smart Display: Digital interface shows input/output voltage, load status, and fault indicators.
Why Choose a Servo Stabilizer Over a Relay Stabilizer?
- Precision: Servo stabilizers offer real-time, fine-tuned regulation compared to the stepped correction of relay models.
- Reliability: Ideal for mission-critical equipment where voltage stability directly impacts performance.
- Longevity: With fewer abrupt switchings, servo models typically experience lower wear and tear.
- Smooth Output: No waveform distortion makes them safe for sensitive electronics.
If you’re powering computers, laser machinery, or diagnostic equipment, a servo model is your best bet.
Buying Guide – What to Consider Before You Purchase
When selecting a servo voltage stabilizer between 8KVA–15KVA, keep these in mind:
- Load Capacity: Check the total wattage of all connected devices. Add a safety margin of 20–30%.
- Voltage Conditions: Know your local voltage variation. If voltage often drops below 140V, opt for the 110–260V version.
- Space Requirements: While compact, the 15KVA version is taller—check your installation space.
- Application Type: For delicate devices like medical or lab equipment, always choose a servo model over a relay model.
Want the best price? Our team offers factory direct prices, better bulk prices and custom configurations to suit your needs.
FAQ
Q1: What is the price range for an 8–15KVA servo voltage stabilizer?
The price depends on input range, protection features, and customization. On average, 8KVA units start around $120–$180, while 15KVA models range from $240–$350. Contact us for an exact quote based on your configuration.
Q2: Can I use a servo stabilizer with inductive loads like motors or pumps?
Yes, but make sure the selected model has a capacity 2x to 3x higher than the equipment’s rated power to handle inrush current.
Q3: What kind of maintenance do these stabilizers require?
Servo stabilizers are generally low-maintenance. Keep the unit dust-free, ensure proper ventilation, and have the servo motor inspected annually for optimal performance.
