Which Transformer Is Used in Servo Voltage Stabilizer?

Among various automatic voltage regulation technologies, the servo voltage stabilizer (also called servo type AVR) remains one of the most reliable and widely used solutions for maintaining a consistent power supply. At the heart of every servo stabilizer lies its transformer—the core component that enables voltage correction with precision.

In this article, we’ll explore in detail which transformer is used in a servo voltage stabilizer, why it’s chosen, its applications, market trends, and how to select the right stabilizer for your needs.

1. What Is a Servo Voltage Stabilizer?

A servo voltage stabilizer is an electrical device designed to regulate fluctuating input voltage and provide stable output voltage to sensitive electrical and electronic equipment. Unlike static voltage stabilizers or relay-based designs, the servo stabilizer uses a servo motor-controlled mechanism in combination with a buck-boost transformer to correct voltage deviations smoothly.

Core Concept:

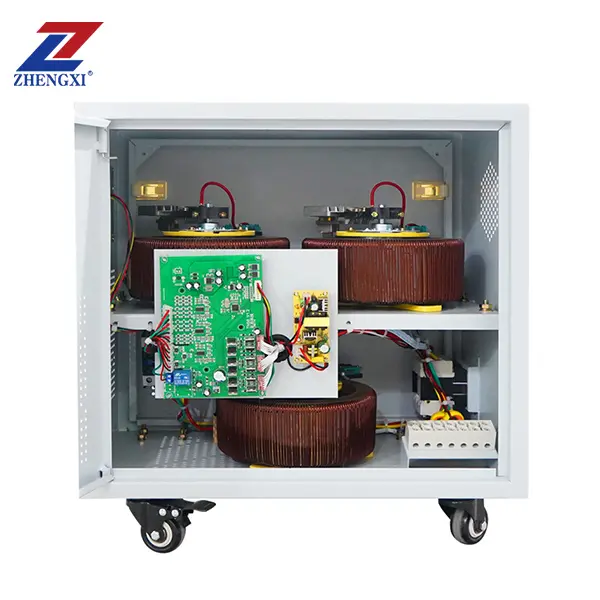

• Servo AVR Working Principle: A servo motor drives a variable autotransformer (variac), which adjusts the output voltage of a buck-boost transformer.
• The controlled movement ensures step-less regulation with ±3% voltage accuracy, making it ideal for critical loads.

2. Which Transformer Is Used in Servo Voltage Stabilizer?

The key transformer used is the buck-boost transformer (also called a series transformer).

Why Buck-Boost Transformer?

• It is connected in series with the input supply.
• When the servo-driven variac changes the tap position, it injects either additional voltage (boost) or reduced voltage (buck) into the output.
• This ensures the output remains within the desired stable voltage range, usually 220V ±3% (single-phase) or 380V; 415V ±3% (three-phase).

Characteristics:

• Copper wound transformer (for durability and efficiency).
• Designed to handle continuous duty cycle.
• Low losses and high efficiency (>98%).
• Capable of supporting large kVA ratings (1 kVA to 3000 kVA).

Reference: According to IEEE Transactions on Power Delivery, buck-boost transformers in servo AVRs are preferred for their high dynamic response and reduced harmonic distortion compared with traditional relay stabilizers.

3. Applications of Servo Voltage Stabilizers

Servo stabilizers with buck-boost transformers are widely used in:

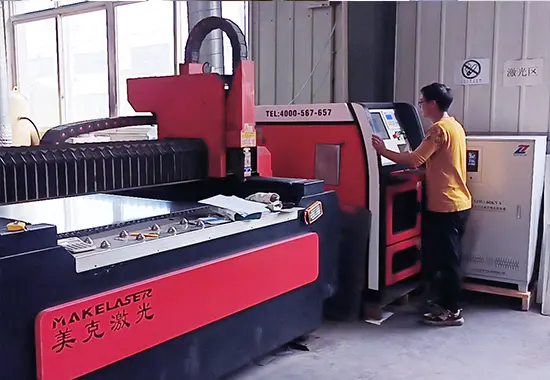

• Industrial plants: CNC machines, textile equipment, plastic molding, and printing machinery.
• Commercial buildings: Data centers, hospitals, hotels, and office complexes.
• Residential sector: Large villas, sensitive home appliances, HVAC systems.
• Telecom & IT: Base stations, server farms, and control rooms.

4. Market Trends and Industry Background

• Growing Demand: The global voltage stabilizer market is projected to grow at ~6% CAGR (2024–2030), driven by automation, industrial digitization, and renewable energy integration.
• Shift Toward Efficiency: Manufacturers are adopting energy-efficient buck-boost transformers with low iron losses.
• Eco-Concerns: Transition from oil-cooled to dry-type resin transformers inside servo AVRs for safety and environmental compliance.

Reference: International Energy Agency (IEA) and IEEMA (Indian Electrical & Electronics Manufacturers Association) highlight stabilizers as essential in developing economies where grid instability remains common.

5. Technical Parameters: Servo vs. Other Stabilizers

6. Difference from Other Technologies

• Relay Stabilizers: Use relay switching, cheaper but less precise.
• Static AVR: Uses IGBTs and microprocessors, faster but expensive and limited in kVA range.
• Servo AVR: Balances accuracy, reliability, and cost, thanks to its robust buck-boost transformer design.

7. Buying Guide: How to Select the Right Servo Stabilizer

When choosing a servo stabilizer, consider:

1. Input Voltage Range: Select based on your local grid conditions (e.g., 140–260V or 170–270V for single-phase).
2. Load Capacity (kVA): Always size 20–30% higher than your connected load.
3. Type of Cooling: Oil-cooled for heavy-duty industrial use, air-cooled for homes and offices.
4. Phase Requirement: Single-phase (homes, offices) or three-phase (industries).
5. Manufacturer Reputation: Look for ISO-certified servo voltage stabilizer manufacturers with proven track records (e.g., ABB, Schneider Electric, and ZHENGXI Electric).

8. FAQs

Q1: Why is the buck-boost transformer critical in servo AVRs?
A: It injects the precise amount of voltage required to maintain stable output, making it the backbone of servo stabilizer performance.

Q2: Which is better—servo stabilizer or static stabilizer?
A: Servo stabilizers are preferred for heavy-duty industrial loads due to their high durability and cost-effectiveness, while static stabilizers are better for ultra-sensitive IT equipment.

Q3: What is the lifespan of a servo voltage stabilizer transformer?
A: With proper maintenance, the buck-boost transformer inside a servo AVR lasts 15–20 years.

Conclusion: Why Choose ZHENGXI as Your Servo Voltage Stabilizer Manufacturer?

At ZHENGXI Electric, we specialize in designing and manufacturing servo voltage stabilizers with high-quality buck-boost transformers engineered for industrial, commercial, and residential applications.

• Customized designs (1 kVA to 3000 kVA).
• Energy-efficient transformers for reduced operating costs.
• Global quality certifications (ISO, CE, IEC standards).
• Proven reliability across thousands of installations.

If you’re looking for a trusted servo voltage stabilizer manufacturer with strong engineering expertise and customer-first support—ZHENGXI is your partner of choice.

👉 Contact us today to request a quotation or technical consultation.
